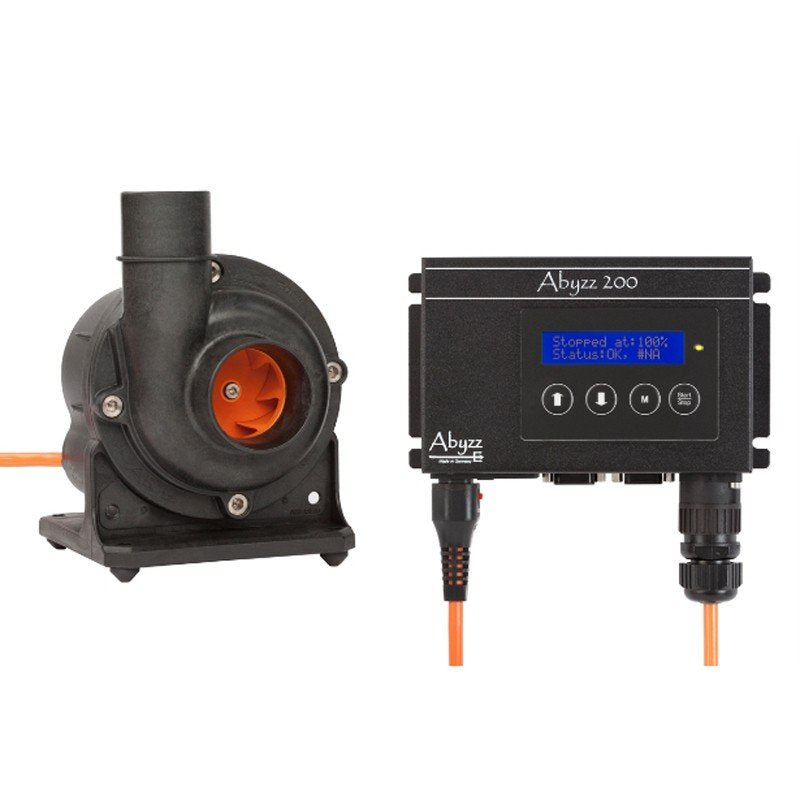

Abyzz A200 Return Pump (3m cable)

The innovative Abyzz A200 pump with its titanium impeller consists of powerful and programmable menu-controlled electronics (driver) and a sinusoidal, three-phase synchronous motor (pump). The efficiency factor of the motor is more than 90%, which, along with the fact that you can adjust the speed to meet your performance requirements, makes it an energy-saving solution. The integrated bearing flushing provides optimum protection against calcination and, in conjunction with the silicon carbide bearings and special hard metal shaft, ensures low-maintenance operations. The materials used are designed to have a long lifetime and meet the highest requirements and quality standards. This product was developed and manufactured in Germany by venotec. „Made in Germany“

Special features

- Variable speed range (0 - 100%)
- Programmable control system (e.g. wave and random modes)
- Comprehensive safety functions (e.g. dry run, temperature, and overcurrent protection)
- Soft startup
- Bus-enabled interface for peripheral devices
- Lockable plug contacts
- Low-noise operation
- Choice of 3m or 10m cable length

Technical data

The pump pipes can be immersed or in a dry position. Please note that this pump is not selfpriming.
Maximum flow rate : 17,000 l/h Rated flow rate : 14,500 l/h Discharge flow speed : max. 5.4m/s : nom. 4.6m/s
Delivery height : max. 8.8m Rated input : 4...200W
Operating voltage : 230V~, 50...60Hz Ambient temperature : +2°C...+40°C
Maximum operating pressure : 1.5 bar Maximum immersion depth : 2
Meter Pump cable length : 3m order 10m Inlet/outlet connections : 50mm/40mm (suitable for PVC/AVB adhesive fittings)

Special features

- Variable speed range (0 - 100%)
- Programmable control system (e.g. wave and random modes)
- Comprehensive safety functions (e.g. dry run, temperature, and overcurrent protection)
 - Soft startup - Bus-enabled interface for peripheral devices
- Lockable plug contacts
- Low-noise operation
- Choice of 3m or 10m cable length
