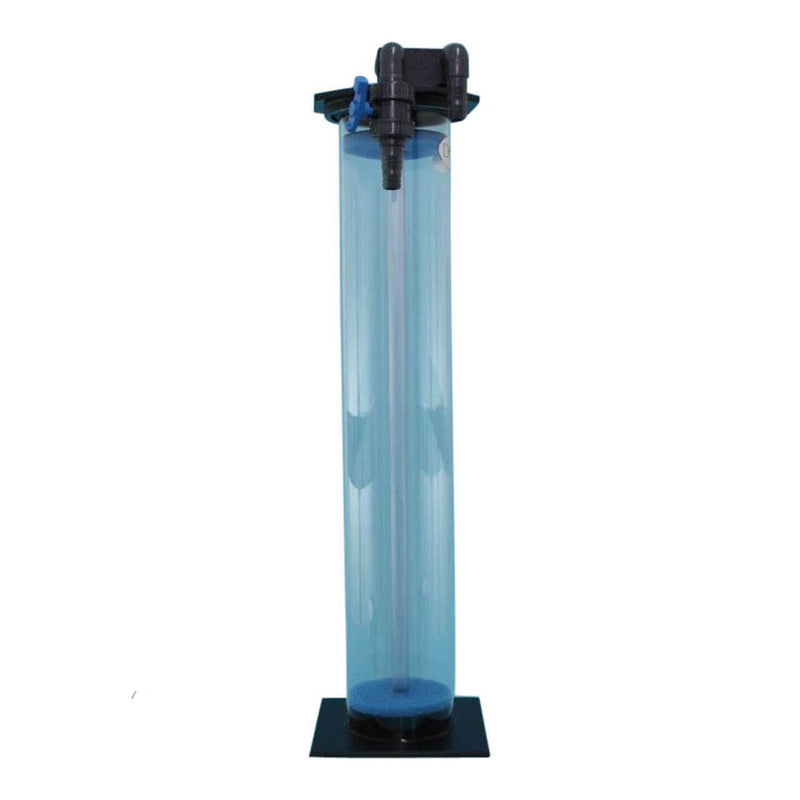

Deltec FR1016 Fluidised reactor

The FR1016 is a substantial fluidised reactor with a twist off bayonet lid to allow easy access for replacement of the media. It is the taller version of the FR616. The water is forced down a central tube and is returned back up through a diffuser plate. Sponges are fitted either side of the media section to retain the finer particles.

The FR1016 is better known as a Rowaphos reactor for its common use for fluidising Rowaphos however this quality reactor can be used for carbon or fluidising sand as a biological media.

The lid is fitted with a tap to adjust the flow and two hosetails connected to unions for simple removal or to allow hard piping to be used.

Specification
Capacity:

Suitable for up to 9.0 lts of media.

Flow rate:

Up to 2500 lt/hr (pump not supplied)
Up to 650 USG/hr (pump not supplied)

Dimensions:

300 mm x 250 mm x 1000 mm high (including fittings)
12" x 10" x 39.5" high (including fittings)
